4" x 4" - 6" x 6" - 8" x 8" - 10" x 10" Injection Molded Bell/Bell Couplers (HDPE Dual Wall Injection Molded Couplers Fittings)
Filename:
4" x 4" - 6" x 6" - 8" x 8" - 10" x 10" Injection Molded Bell/Bell Couplers (HDPE Dual Wall Injection Molded Couplers Fittings).pdf
This document is the 4" x 4" - 6" x 6" - 8" x 8" - 10" x 10" Injection Molded Bell/Bell Couplers (HDPE Dual Wall Injection Molded Couplers Fittings). A diagram with table and notes provided.

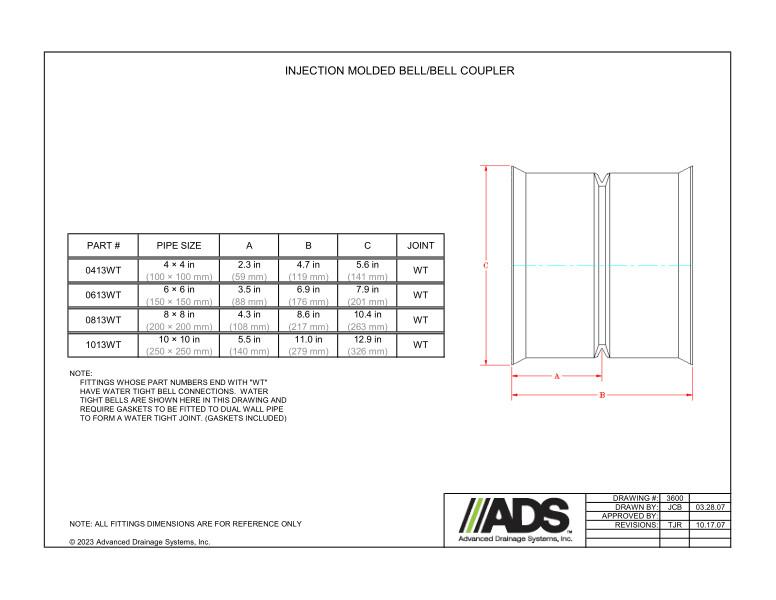

The illustration of the injection molded Bell/Bell coupler shows the A/B/C dimensions.
A table with part number, pipe size and A/B/C/Joint dimensions is provided.
Fittings whose part numbers end with “WT” have water tight bell connections. Water tight bells require gaskets to be fitted to dual wall pipe to form a water tight joint. Gaskets are included. All fittings dimensions are for reference only.
