8" N-12 Dual Wall End Cap Nyloplast Detail

Filename:
8" N-12 Dual Wall End Cap Nyloplast Detail.pdf

Download Document (pdf) View in Browser
8" N-12 Dual Wall End Cap Nyloplast Detail

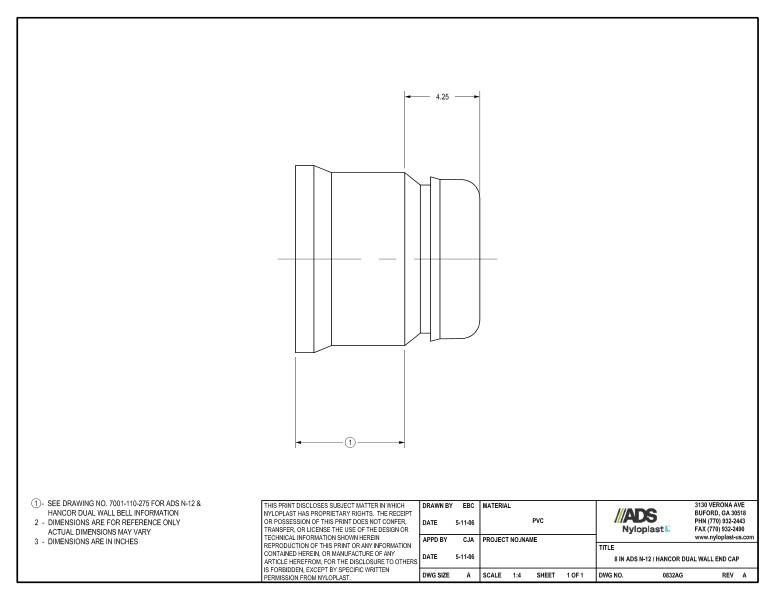

This document is the 8” N-12 Dual Wall Endcap Nyloplast Detail. Dimensions and nyloplast illustration shown.

A note on dimension 1 references Hancor Dual Wall Bell for more information. Note 2 states that dimensions are for reference only. Note 3 specifies that dimensions are in inches.

An illustration showing the dimensions is provided.

8" N-12 Dual Wall End Cap Nyloplast Detail
