30 x 12 HP Tee with Gasketed SWR Bell Nyloplast Detail

Filename:
30 x 12 HP Tee with Gasketed SWR Bell Nyloplast Detail.pdf

Download Document (pdf) View in Browser
30 x 12 HP Tee with Gasketed SWR Bell Nyloplast Detail

This document is the 30 x 12 HP Tee with Gasketed SWR Bell Nyloplast Detail. Dimensions and nyloplast illustration shown.

A note on dimension 1 references ADS/Hancor N-12 HP Dual Wall Bell for more information. A note on dimension 2 references Gasketed SWR Bell for more information. Note 3 states that dimensions are for reference only. Note 4 specifies that dimensions are in inches.

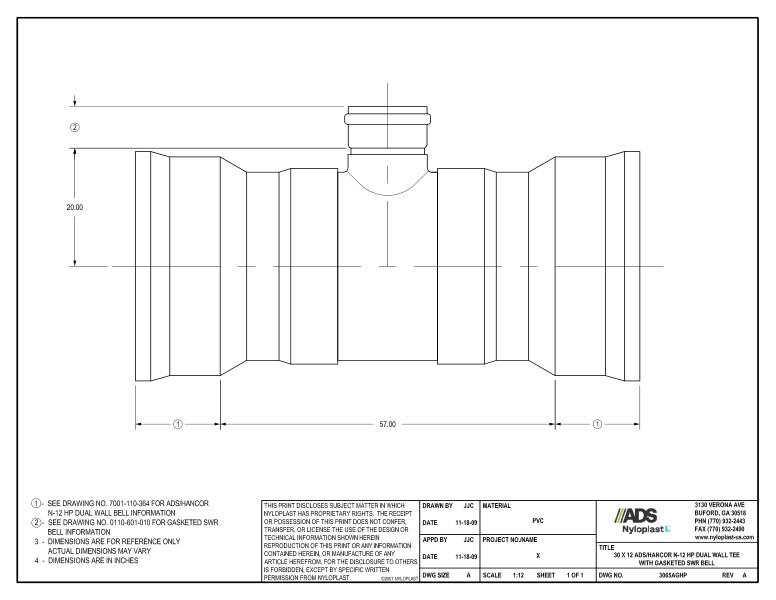

An illustration showing the dimensions is provided.

30 x 12 HP Tee with Gasketed SWR Bell Nyloplast Detail
