N-12® Mega Green® ST IB Pipe (per ASTM F2648) pipe contains recycled content. The pipe is used in various land drainage systems such as storm sewers, golf, turf and recreation drainage systems, industrial, mining and forestry industries, land reclamation projects, retention & detention systems, waterways, grain aeration, and ditch enclosures.

N-12 Mega Green ST IB Pipe (per ASTM F2648) contains a superior built-in bell-and-spigot joint. The joints are sealed by factory-installed rubber gaskets that meet all of the requirements of ASTM F477. A polyethylene bell minimizes joint distortion.

The pipe features a range of diameters from 4”-60” (100-1500 mm) and it is certified to meet ASTM F2648 requirements. The pipe has an in-line bell & spigot joint design for exceptional joint strength. This pipe is lightweight and has fast installation times in the field. N-12 Mega Green ST IB Pipe (per ASTM F2648) comes in a variety of diameters and lengths that will fit any project. No additional gasket materials, grout or sealing bands are required.

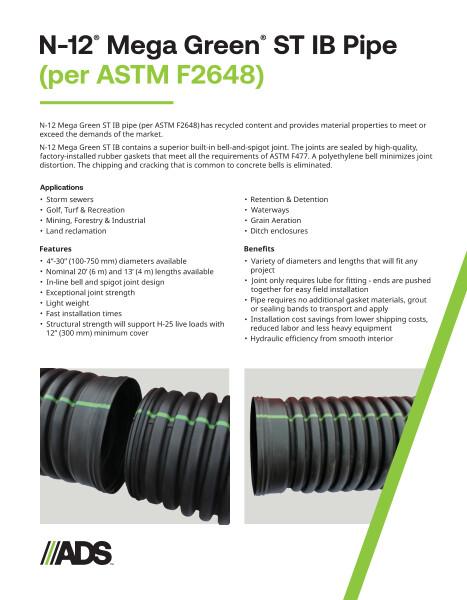

This document includes additional information about the ADS N-12 Mega Green ST IB Pipe (per ASTM F2648) specifications designed for use in gravity-flow land drainage applications.

The specifications for N-12 Mega Green ST IB Pipe include the requirements, joint performance, fittings, N-12 Mega Green ST IB Pipe material properties and installation.

For complete installation guidelines for the N-12 Mega Green ST IB Pipe, please refer to the most updated published installation guidelines. Maximum fill heights depend on embedment material and compaction level; please refer to Technical Note 2.02 for more information. A table is included in this document for pipe dimensions with nominal diameter. The table contains pipe O.D. values for reference purposes only, values stated are for 12”-60” +/-1 inch. Please contact an ADS representative for more information.
