18" - 30" Locking Frame & Cover Bolted to Drain Basin Nyloplast Detail

Filename:
18" - 30" Locking Frame & Cover Bolted to Drain Basin Nyloplast Detail.pdf

Download Document (pdf) View in Browser
18" - 30" Locking Frame & Cover Bolted to Drain Basin Nyloplast Detail

This document is the 18" - 30" Locking Frame & Cover Bolted to Drain Basin Nyloplast Detail. Illustrations with descriptions shown.

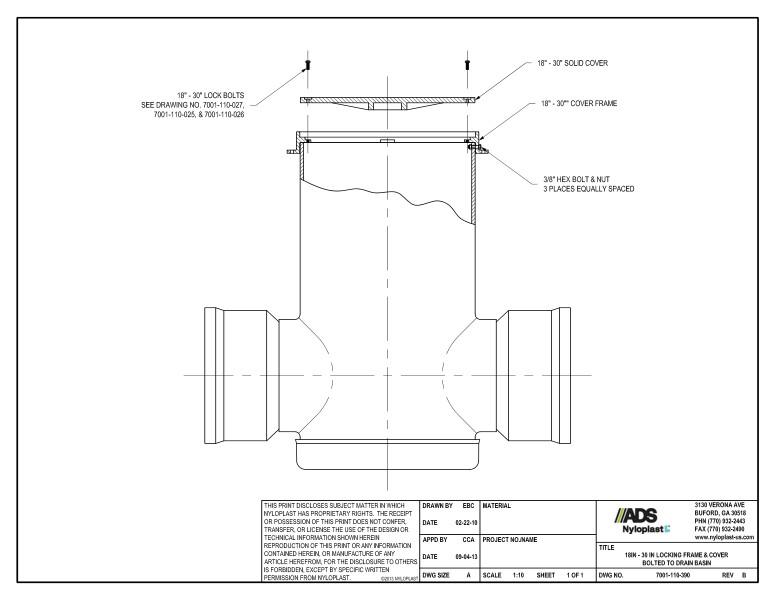

The detail shows the various parts and dimensions of the frame & cover including the 18” – 30” lock bolts, 18” – 30” solid cover, 18” – 30” cover frame, hex bolt and nut equally spaced.

18" - 30" Locking Frame & Cover Bolted to Drain Basin Nyloplast Detail
