This document is the 15" Pedestrian Grate Assembly Nyloplast Detail. It shows the nyloplast grate with dimensions.

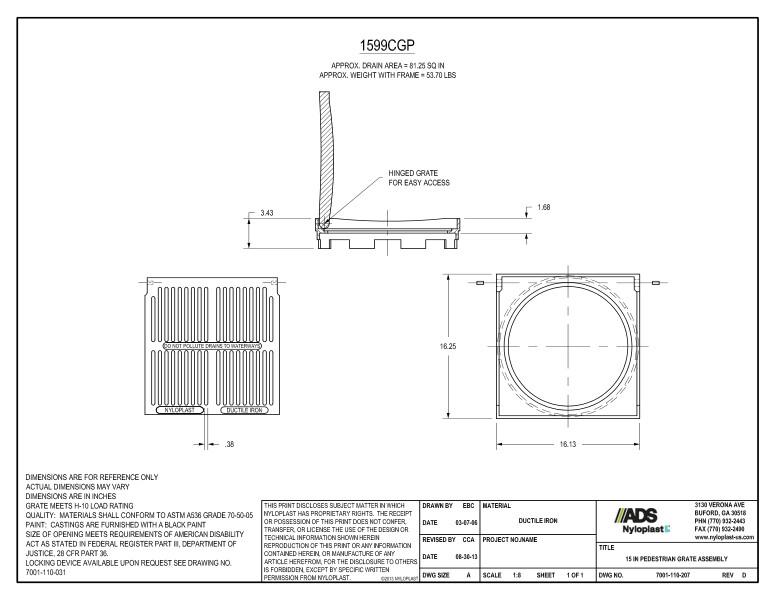

The illustrations show the nyloplast 15” grate with dimensions with approximate drain area of 81.25 SQ inches and approximate weight of 53.70 LBS. A top and side view of a hinged gate for easy access is shown.

Notes detail that dimensions are for reference only and in inches. Grate meets H-20 load rating. Materials shall conform per ASTM A536 grade 70-50-05. Castings are furnished with a black paint. Size of opening meets requirements of American Disability Act. The locking device is available upon request.
