24 x 6 N-12 Dual Wall Tee Wye Nyloplast Detail

Filename:
24 x 6 N-12 Dual Wall Tee Wye Nyloplast Detail.pdf

Download Document (pdf) View in Browser
24 x 6 N-12 Dual Wall Tee Wye Nyloplast Detail

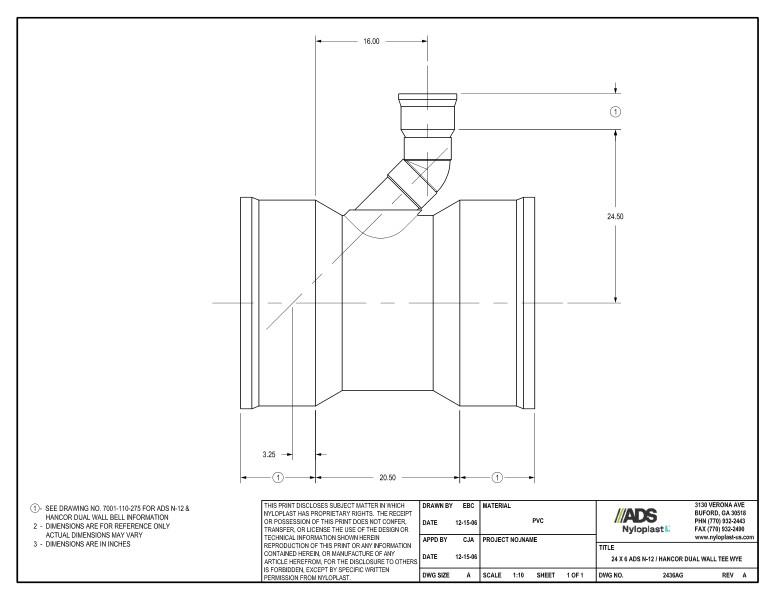

This document is the 24 x 6 N-12 Dual Wall Tee Wye Nyloplast Detail. Dimensions and nyloplast illustration shown.

A note on dimension 1 references Hancor Dual Wall Bell for more information. Note 2 states that dimensions are for reference only. Note 3 specifies that dimensions are in inches.

An illustration showing the dimensions is provided.

24 x 6 N-12 Dual Wall Tee Wye Nyloplast Detail
