12 x 12 HP Wye Nyloplast Detail

Filename:
12 x 12 HP Wye Nyloplast Detail.pdf

Download Document (pdf) View in Browser
12 x 12 HP Wye Nyloplast Detail

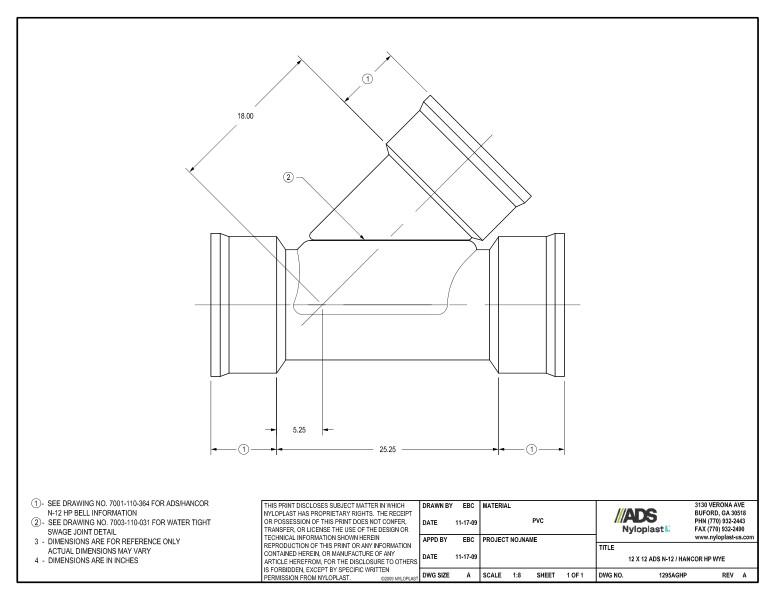

This document is the 12 x 12 HP Wye Nyloplast Detail. Dimensions and nyloplast illustration shown.

A note on dimension 1 references ADS/Hancor N-12 HP Bell for more information. Note 2 directs to see drawing for water tight SWAGE joint detail. Note 3 states that dimensions are for reference only. Note 4 specifies that dimensions are in inches.

An illustration showing the dimensions is provided.

12 x 12 HP Wye Nyloplast Detail
