8" - 18" Stormtech Dual Wall Fabricated Soil Tight Plain End Reducing Triple Manifolds (StormTech Dual Wall HDPE Fittings)
Filename:
8" - 18" Stormtech Dual Wall Fabricated Soil Tight Plain End Reducing Triple Manifolds (StormTech Dual Wall HDPE Fittings).pdf
This document is the 8" - 18" StormTech Dual Wall Fabricated Soil Tight Plain End Reducing Triple Manifolds (StormTech Dual Wall HDPE Fittings). Diagrams and table included.

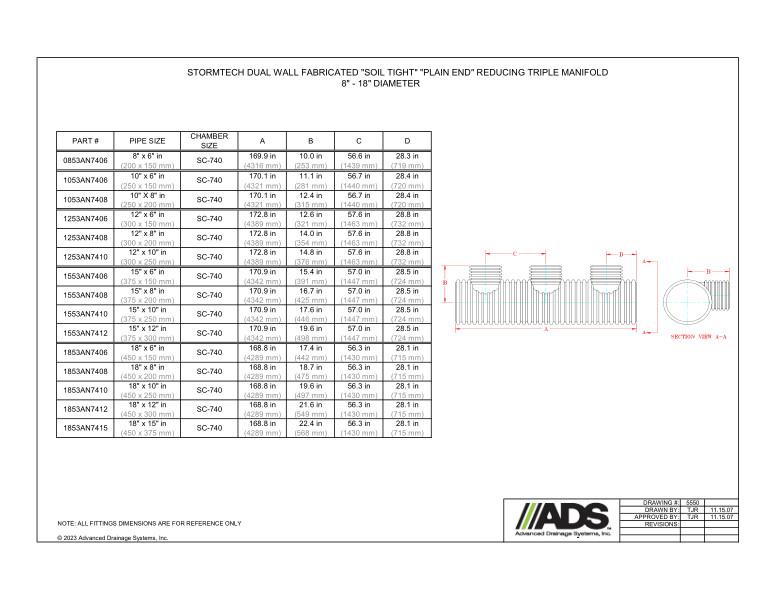

StormTech Dual Wall Fabricated “Soil Tight” “Plain End” Reducing Triple Manifolds 8" - 18" diameter shows the section view diagrams with A/B/C/D dimensions.
The table lists the part number, pipe size, chamber size and A/B/C/D dimension values.
All fittings dimensions are for reference only.
