24" - 48" StormTech Dual Wall Fabricated Soil Tight Plain End Reducing Single Manifolds (StormTech Dual Wall HDPE Fittings)
Filename:
24" - 48" StormTech Dual Wall Fabricated Soil Tight Plain End Reducing Single Manifolds (StormTech Dual Wall HDPE Fittings).pdf
This document is the 24" - 48" StormTech Dual Wall Fabricated Soil Tight Plain End Reducing Single Manifolds (StormTech Dual Wall HDPE Fittings). Diagrams and table included.

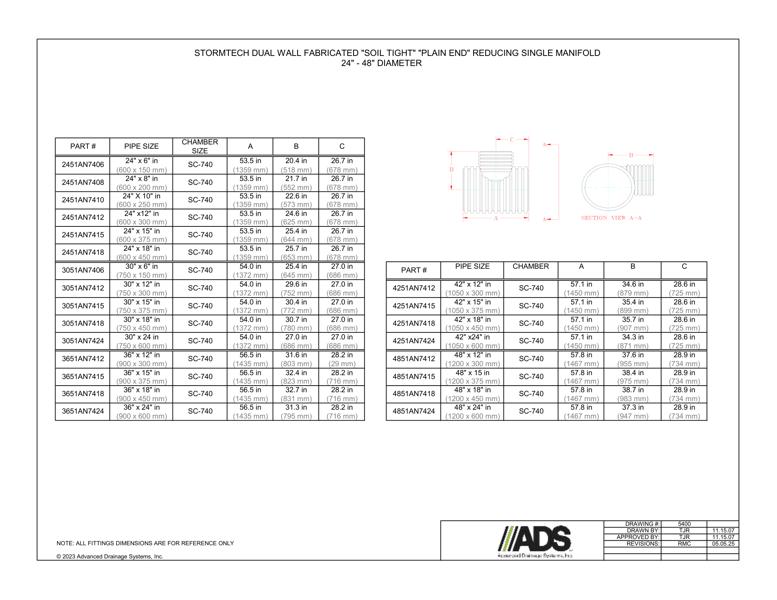

StormTech Dual Wall Fabricated “Soil Tight” “Plain End” Reducing Single Manifold 24" - 48" diameter shows the side view and section view manifold diagrams with A/B/C dimensions.
The table lists the part number, pipe size, chamber size and A/B/C dimension values.
All fittings dimensions are for reference only.
