204H 12-30 HDPE N-12 Booted (Cast-In) Structure Connection with PVC Adapter

Filename:
204H 12-30 HDPE N-12 Booted (Cast-In) Structure Connection with PVC Adapter.dwg

Download Document (dwg)
204H 12-30 HDPE N-12 Booted (Cast-In) Structure Connection with PVC Adapter

This document is the Booted (Cast-In) Resilient Structure Connection 12”-30” HDPE N-12 with Nyloplast PVC MH Adapter. Diagram with table provided.

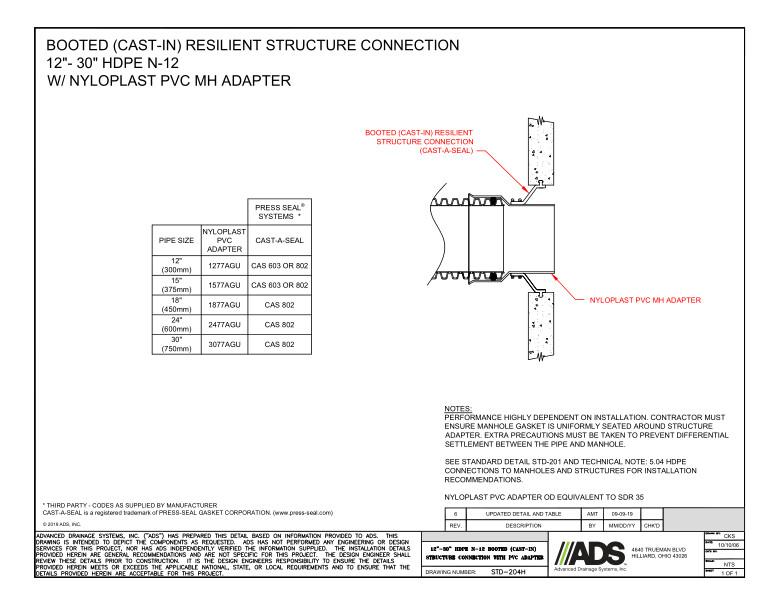

The diagram of the Booted (Cast-In) Resilient Structure Connection 12”-30” HDPE N-12 with Nyloplast PVC MH Adapter shows the booted (Cast-In) resilient structure connection (Cast-A-Seal) and nyloplast PVC MH adapter.

The table lists the values for pipe size, nyloplast PVC adapter and Press Seal Systems/Cast-A-Seal.

Notes state that performance dependent on installation. Ensure that manhole gasket is uniformly seated around structure adapter to prevent differential settlement between the pipe and manhole. See standard detail STD-201 and technical note 5.04 connections to manholes and structures for installation recommendations. Nyloplast PVC Adapter OD equivalent to SDR 35.
