15" HP Stop Coupling Nyloplast Detail

Filename:
15" HP Stop Coupling Nyloplast Detail.pdf

Download Document (pdf) View in Browser
15" HP Stop Coupling Nyloplast Detail

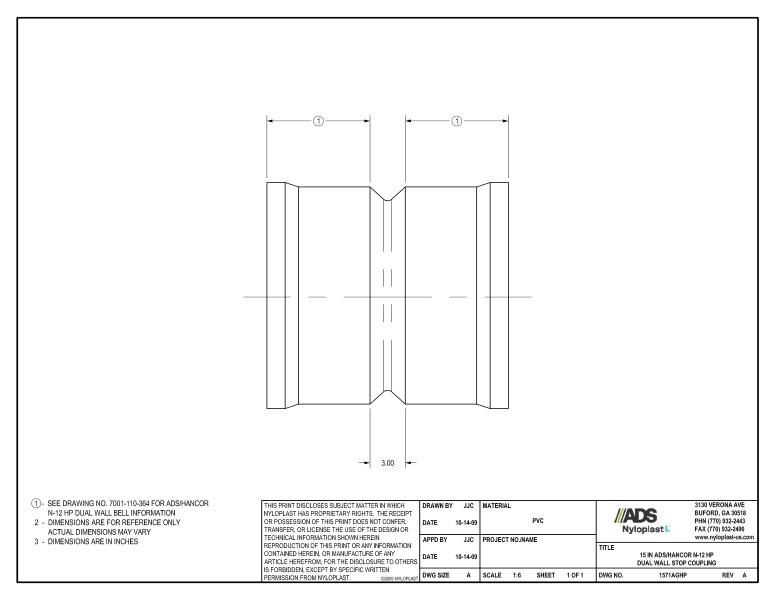

This document is the 15” HP Stop Coupling Nyloplast Detail. Illustration shown with dimensions and notes.

The illustration shows the 3.00 dimension.

Note 1 refers to a drawing for ADS/Hancor N-12 HP Bell information. Note 2 states that dimensions are for reference only. Note 3 states that dimensions are in inches.

15" HP Stop Coupling Nyloplast Detail
