902A Arc 24 Side Port Coupler Detail

Filename:
902A Arc 24 Side Port Coupler Detail.pdf

Download Document (pdf) View in Browser
902A Arc 24 Side Port Coupler Detail

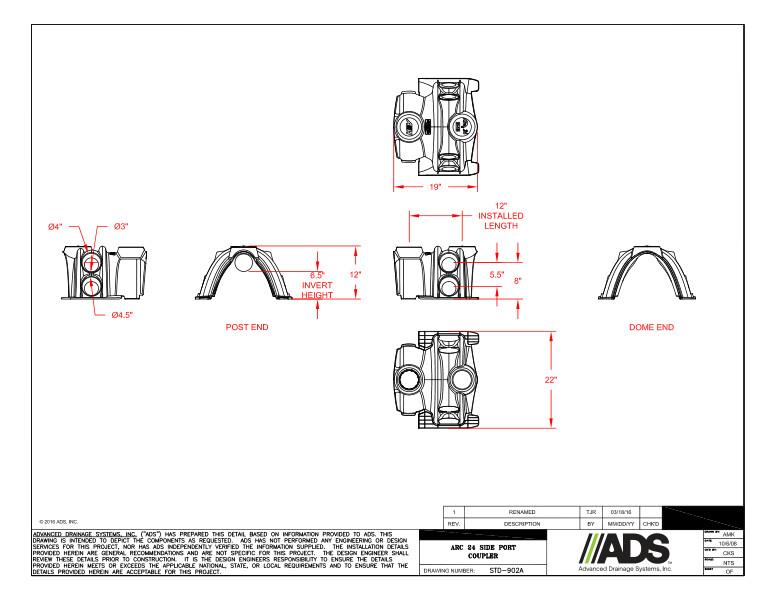

This document is the 902A Arc 24 Side Port Coupler Detail. Details show the coupler with descriptions and dimensions.

The details show the post end, dome end, installed length and invert. Coupler dimensions are included.

902A Arc 24 Side Port Coupler Detail
