12" Adapter - HP Bell x SCH 40 Bell Nyloplast Detail

Filename:
12" Adapter - HP Bell x SCH 40 Bell Nyloplast Detail.pdf

Download Document (pdf) View in Browser
12" Adapter - HP Bell x SCH 40 Bell Nyloplast Detail

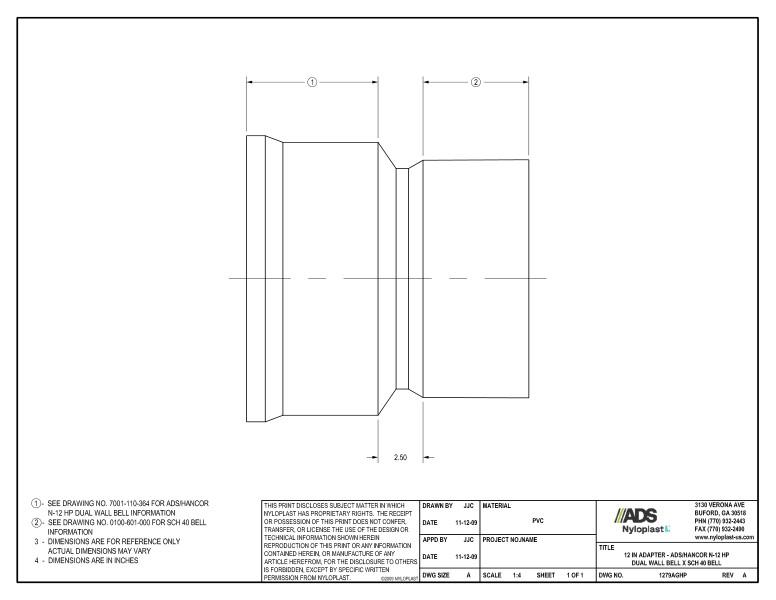

This document is the 12” Adapter - HP Bell x SCH 40 Bell Nyloplast Detail. Dimensions and nyloplast illustration shown.

A note on dimension 1 references ADS/Hancor N-12 HP Dual Wall Bell for more information. A note on dimension 2 references a drawing for SCH 40 bell information. Note 3 states that dimensions are for reference only. Note 4 specifies that dimensions are in inches.

An illustration showing the dimensions is provided.

12" Adapter - HP Bell x SCH 40 Bell Nyloplast Detail
