24" N-12 Dual Wall Stop Coupling Nyloplast Detail

Filename:
24" N-12 Dual Wall Stop Coupling Nyloplast Detail.dwg

Download Document (dwg)
24" N-12 Dual Wall Stop Coupling Nyloplast Detail

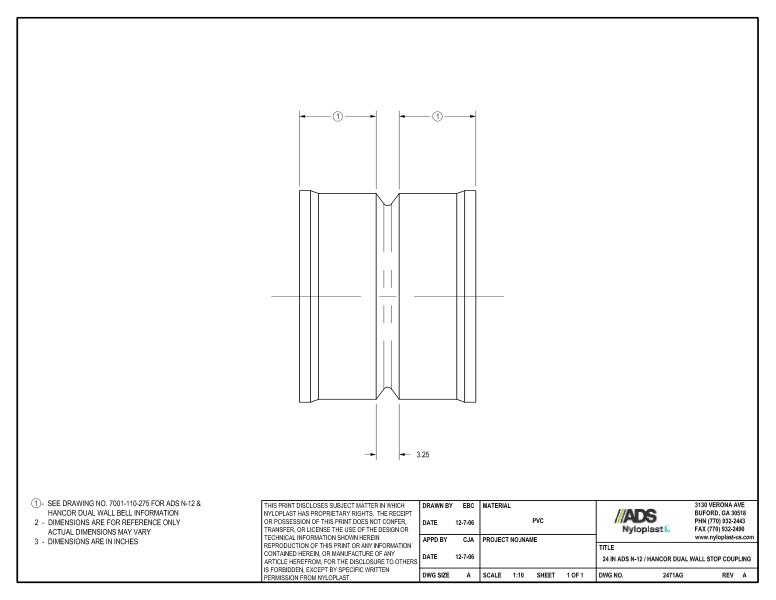

This document is the 24” N-12 Dual Wall Stop Coupling Nyloplast Detail. Dimensions and nyloplast illustration shown.

A note on dimension 1 references Hancor Dual Wall Bell for more information. Note 2 states that dimensions are for reference only. Note 3 specifies that dimensions are in inches.

An illustration showing the dimensions is provided.

24" N-12 Dual Wall Stop Coupling Nyloplast Detail
