4"-60" Diameter End Plugs (HDPE End Plugs and Plugs Fittings)

Filename:
4"-60" Diameter End Plugs (HDPE End Plugs and Plugs Fittings).pdf

Download Document (pdf) View in Browser
4"-60" Diameter End Plugs (HDPE End Plugs and Plugs Fittings)

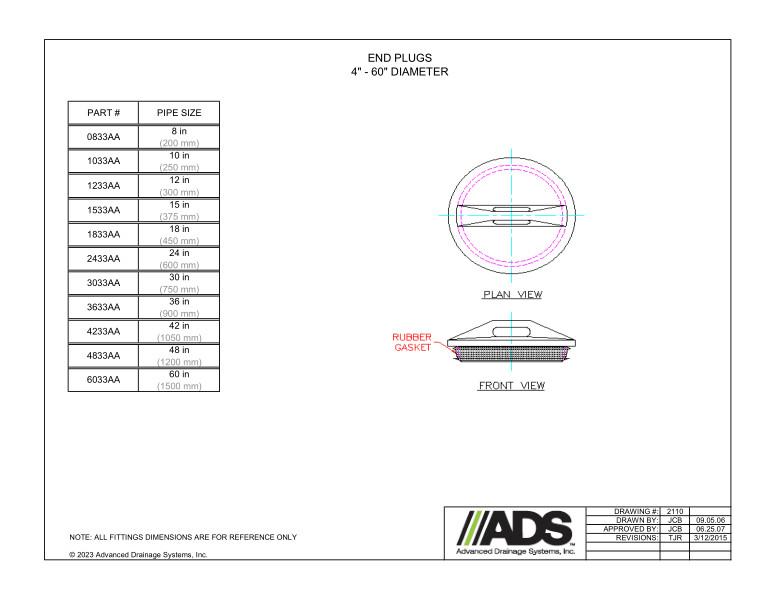

This document is the 4”-60” Diameter Dual End Plugs (HDPE End Plugs and Plugs Fittings). A plan view and front view diagram and table provided.

The illustration of the plan view diagram shows the end plug. The front view diagram shows the rubber gasket.

A table with part number and pipe size is provided.

All fittings dimensions are for reference only.

4"-60" Diameter End Plugs (HDPE End Plugs and Plugs Fittings)
