10" Bronze Grate Assembly (Drain Basin) Nyloplast Detail

Filename:
10" Bronze Grate Assembly (Drain Basin) Nyloplast Detail.pdf

Download Document (pdf) View in Browser
10" Bronze Grate Assembly (Drain Basin) Nyloplast Detail

This document is the 10" Bronze Grate Assembly (Drain Basin) Nyloplast Detail. It shows the nyloplast ductile grate and frame with dimensions.

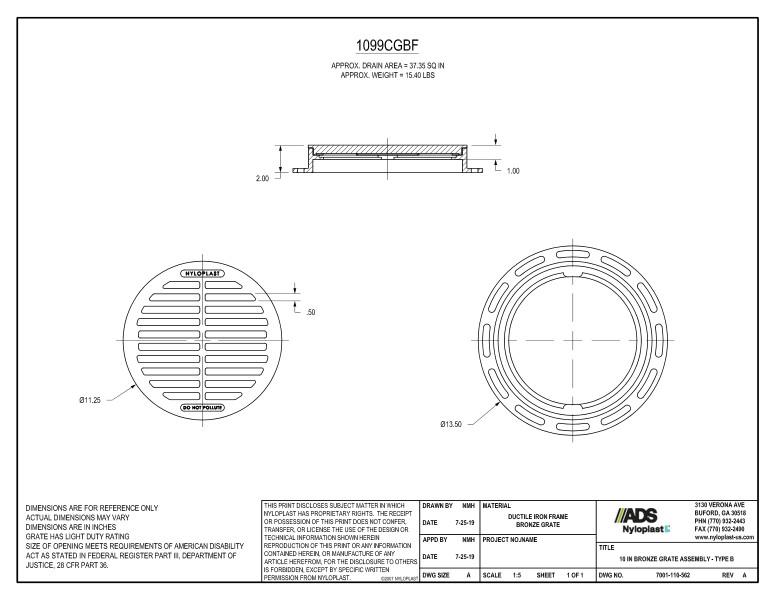

The top down illustration shows the nyloplast grate with dimensions with approximate drain area of 37.35 SQ inches and approximate weight of 15.40 LBS. A top view of the frame and side view is shown.

Notes detail that dimensions are for reference only and in inches. Grate has light duty rating. Size of opening meets requirements of American Disability Act.

10" Bronze Grate Assembly (Drain Basin) Nyloplast Detail
