12 x 6 HP Tee Wye with Gasketed SWR Bell Nyloplast Detail
Filename:
12 x 6 HP Tee Wye with Gasketed SWR Bell Nyloplast Detail.pdf
![12 x 6 HP Tee Wye with Gasketed SWR Bell Nyloplast Detail](https://assets.adspipe.com/m/1da19da48d66957e/webimage-12-x-6-HP-Tee-Wye-with-Gasketed-SWR-Bell-Nyloplast-Detail.jpg)

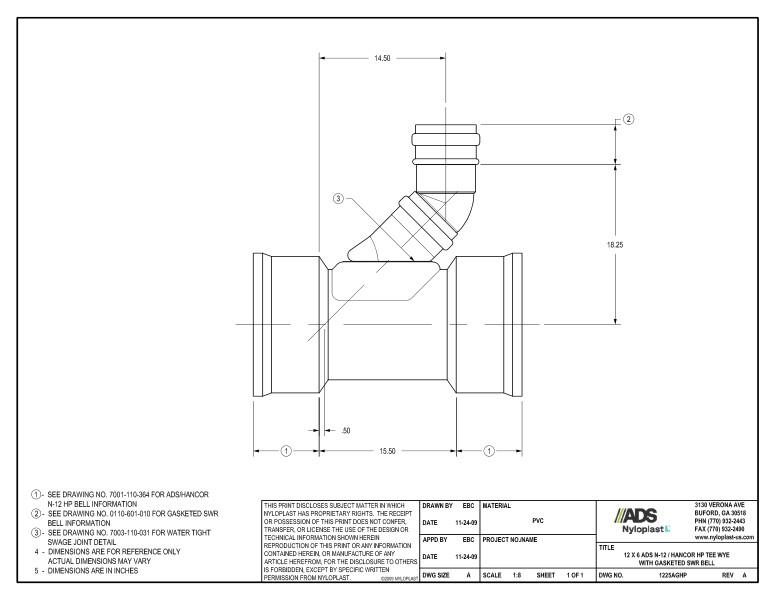

This document is the 12 x 6 Tee Wye with Gasketed SWR Bell Nyloplast Detail. Dimensions and nyloplast illustration shown.
A note on dimension 1 references ADS/Hancor N-12 Bell for more information. A note on dimension 2 references Gasketed SWR Bell for more information. Note 3 directs to see drawing for water tight SWAGE joint detail. Note 4 states that dimensions are for reference only. Note 5 specifies that dimensions are in inches.
An illustration showing the dimensions is provided.
