204F 12-30 HDPE N-12 Booted (Cast-in) Structure Connection with Corr Pipe Adapter Gasket Detail

Filename:
204F 12-30 HDPE N-12 Booted (Cast-in) Structure Connection with Corr Pipe Adapter Gasket Detail.dwg

Download Document (dwg)
204F 12-30 HDPE N-12 Booted (Cast-in) Structure Connection with Corr Pipe Adapter Gasket Detail

This document is the 204F 12-30 HDPE N-12 Booted (Cast-in) Structure Connection with Corr Pipe Adapter Gasket Detail. A detail and chart provided.

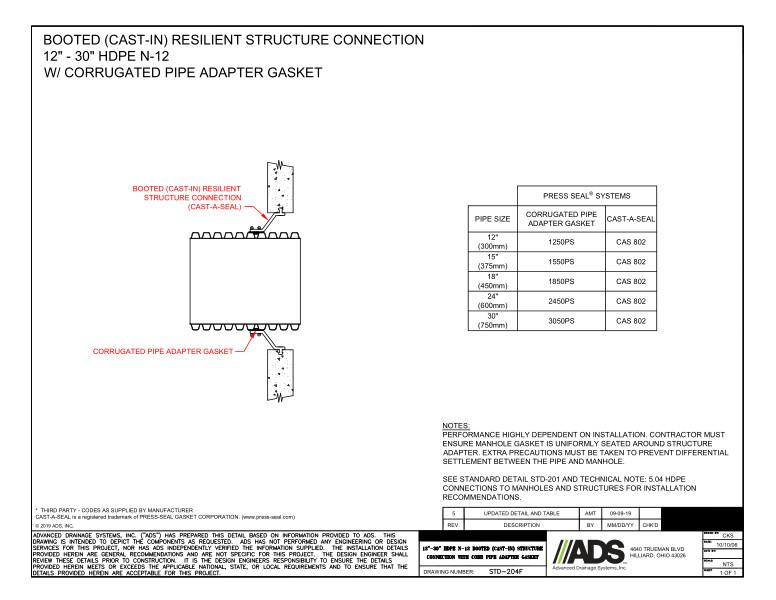

The detail shows the Booted (Cast-In) resilient structure connection and the corrugated pipe adapter gasket.

A chart with values for pipe size, press seal systems with corrugated pipe adapter gasket and Cast-A-Seal in provided.

Notes recommend performance is highly dependent on installation. Manhole gasket must be uniformly seated around structure adapter.
