1480B Duraslot XL Assembly

Filename:
1480B Duraslot XL Assembly.pdf

Download Document (pdf) View in Browser
1480B Duraslot XL Assembly

This document shows the 1480B Duraslot XL Assembly. Details of the Duraslot assembly with component locations and notes provided.

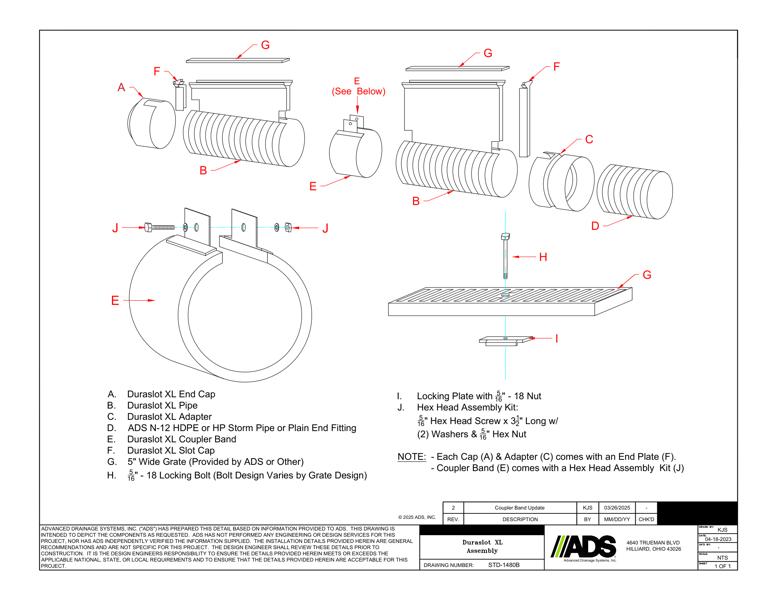

The details show the component locations for Duraslot XL end cap, Duraslot XL pipe, Duraslot XL coupler band, Duraslot XL adapter, ADS N-12 pipe or HP Storm Pipe or pain end fitting, Duraslot XL slot cap, locking bolt, locking plate, 5” wide grate and hex head assembly.

Notes state that each cap & adapter comes with an end plate. Coupler band comes with a hex head assembly kit.

1480B Duraslot XL Assembly
