8 x 6 N-12 Dual Wall Tee Nyloplast Detail

Filename:
8 x 6 N-12 Dual Wall Tee Nyloplast Detail.pdf

Download Document (pdf) View in Browser
8 x 6 N-12 Dual Wall Tee Nyloplast Detail

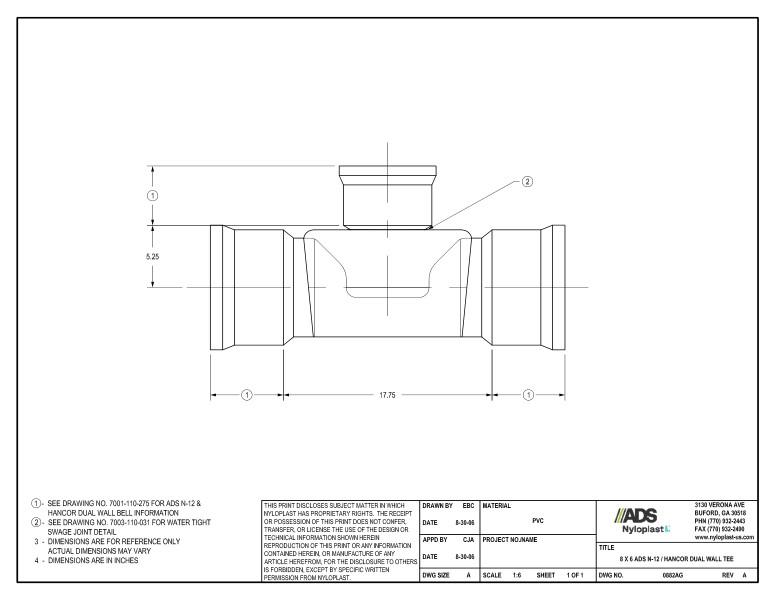

This document is the 8 x 6 N-12 Dual Wall Tee Nyloplast Detail. Dimensions and nyloplast illustration shown.

A note on dimension 1 references Hancor Dual Wall Bell for more information. Note 2 refers to drawing for water tight SWAGE joint detail. Note 3 states that dimensions are for reference only. Note 4 specifies that dimensions are in inches.

An illustration showing the dimensions is provided.

8 x 6 N-12 Dual Wall Tee Nyloplast Detail
