4" - 30" N-12 Dual Wall Universal Bell Information Nyloplast Detail

Filename:
4" - 30" N-12 Dual Wall Universal Bell Information Nyloplast Detail.pdf

4" - 30" N-12 Dual Wall Universal Bell Information Nyloplast Detail

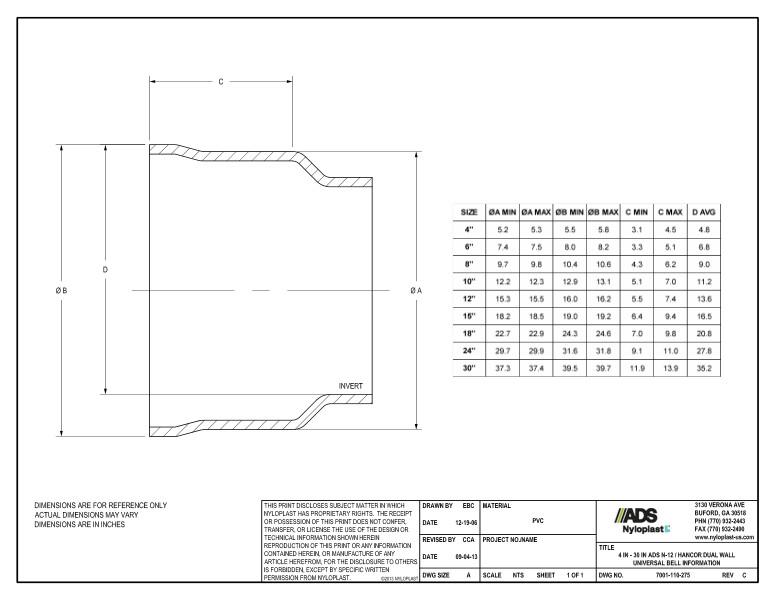

This document is the 4" - 30" N-12 Dual Wall Universal Bell Information Nyloplast Detail. Illustration with dimension chart shown.

An illustration shows the A – D dimensions and invert. The chart details sizes 4”, 6” 8” 10” 12”, 15”, 18” 24” & 30” with corresponding A MIN, A MAX, B MIN, B MAX, C MIN, C MAX & D AVG measurements.

A note specifies that dimensions are for reference only and in inches.
