12"-30" Dome Locking Grate Assembly Nyloplast Detail

Filename:
12"-30" Dome Locking Grate Assembly Nyloplast Detail.pdf

Download Document (pdf) View in Browser
12"-30" Dome Locking Grate Assembly Nyloplast Detail

This document is the 12" - 30" Dome Locking Grate Assembly Nyloplast Detail. It shows the cutout detail with descriptions.

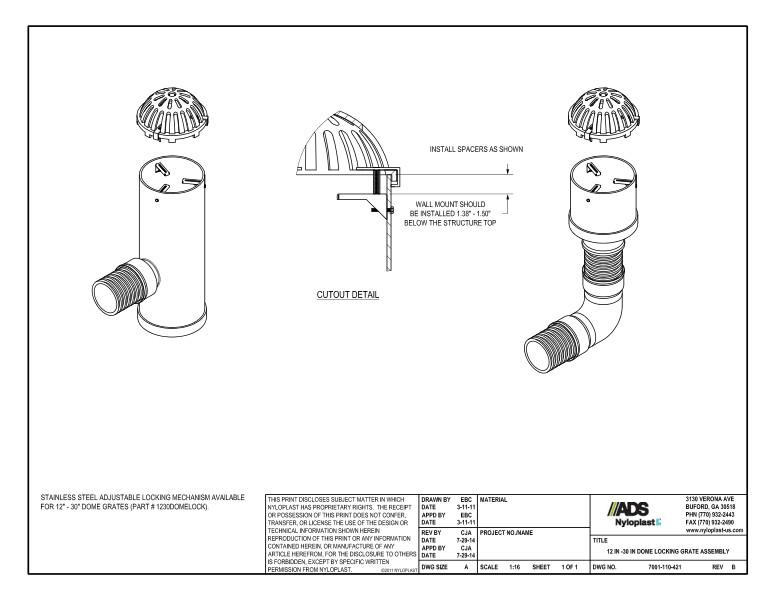

The illustrations show the Dome Locking Grate with descriptions to install spacers as shown and wall mount should be installed below the structure top.

A note states that stainless steel locking mechanism available for 12” to 30” dome grates.
