15" Drop In Nyloplast Detail

Filename:
15" Drop In Nyloplast Detail.pdf

15" Drop In Nyloplast Detail

This document is the 15" Drop In Nyloplast Detail. It shows the nyloplast ductile iron grate with dimensions.

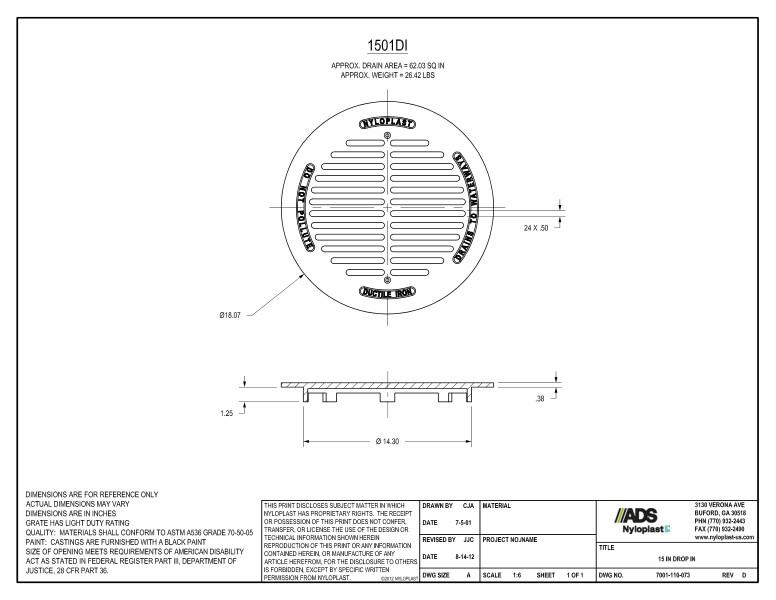

The illustration shows the nyloplast ductile iron grate with dimensions for approximate drain area of 62.03 SQ inches and approximate weight of 26.42 LBS. A side view with dimensions is included.

Notes detail that dimensions are for reference only and in inches. Materials shall be ductile iron per ASTM A536 grade 70-50-05. Grate has light duty rating. Castings are furnished with a black paint. The size of the opening meets requirements of American Disability Act.
