SaniTite HP Miscellaneous Fittings Manual
Filename:
SaniTite HP Miscellaneous Fittings Manual.pdf
![SaniTite HP Miscellaneous Fittings Manual](https://assets.adspipe.com/m/425eef67a6d431d1/webimage-SaniTite-HP-Miscellaneous-Fittings-Manual.jpg)
This document is the SaniTite HP Miscellaneous Fittings Manual. Various units with charts and diagrams shown.

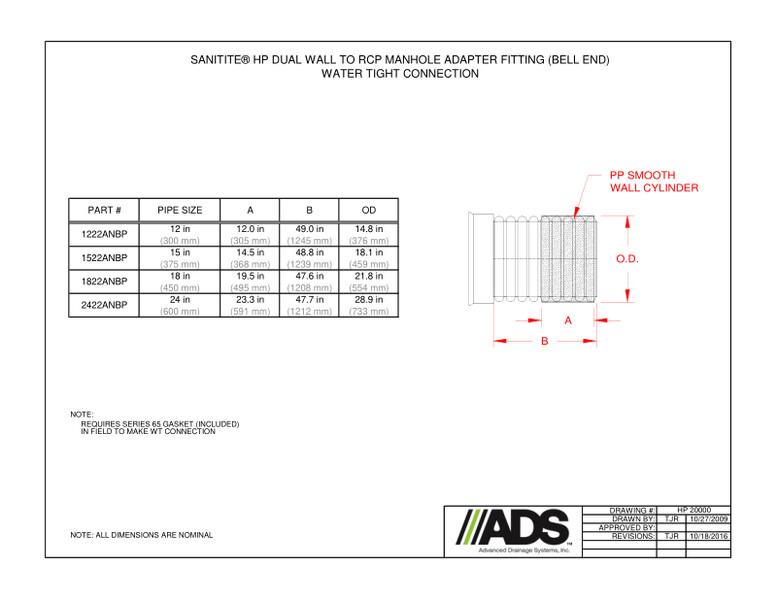

The Sanitite HP Dual Wall To RCP Manhole Adapter Fitting (Bell End) chart shows the part number, pipe size, A/B/OD. The diagram shows the unit with PP smooth wall cyclinder and O.D. Requires a Series 65 Gasket, included.
The Sanitite HP Manhole Adapter chart shows the part number, pipe size, A/OD. The diagram shows the unit with WT (includes 2 gaskets).
The Sanitite HP Dual Wall 12”-30” Joint Pusher chart shows the part number and pipe size. The diagram shows the unit with 7 corrugations IB Spigot end no gasket. A Series 65 Gasket to be ordered separately.
The Sanitite HP Triple Wall 30”-60” Joint Pusher chart shows the part number and pipe size. The diagram shows the unit with 7 corrugations IB Spigot end no gasket. A Series 65 Gasket is needed, included.
The Sanitite HP Triple Wall Fabricated End Caps 30”-60” diameter (IB Spigot) chart shows the part number, pipe size, A/Joint. The diagram shows the unit with welded end plate. WT (includes 2 gaskets).
