N-12 Dual Wall Elbow - 45 Degree Nyloplast Detail

Filename:
N-12 Dual Wall Elbow - 45 Degree Nyloplast Detail.dwg

Download Document (dwg)
N-12 Dual Wall Elbow - 45 Degree Nyloplast Detail

This document is the N-12 Dual Wall Elbow – 45 Degree Nyloplast Detail. Dimensions and nyloplast illustration shown.

A chart details the part numbers 0445AG, 0645AG, 0845AG, 1045AG, 1245AG, 1545AG, 1845AG and 2445AG with corresponding size and A/B dimensions.

A note states that dimensions are for reference only.

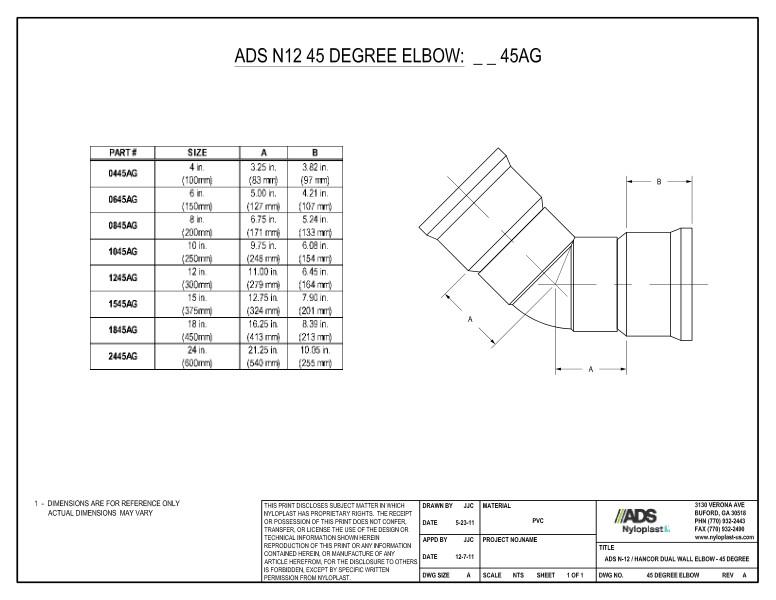

An illustration showing the dimensions is provided.

N-12 Dual Wall Elbow - 45 Degree Nyloplast Detail
