2' x 3' Rectangle Curb Inlet Base Plate General Dimensions Nyloplast Detail
Filename:
2' x 3' Rectangle Curb Inlet Base Plate General Dimensions Nyloplast Detail.dwg
![2' x 3' Rectangle Curb Inlet Base Plate General Dimensions Nyloplast Detail](https://assets.adspipe.com/m/79137258cb727f72/webimage-2-x-3-Rectangle-Curb-Inlet-Base-Plate-General-Dimensions-Nyloplast-Detail.jpg)
This document is the 2' x 3' Rectangle Curb Inlet Base Plate General Dimensions Nyloplast Detail. Illustrations show the various components with descriptions.

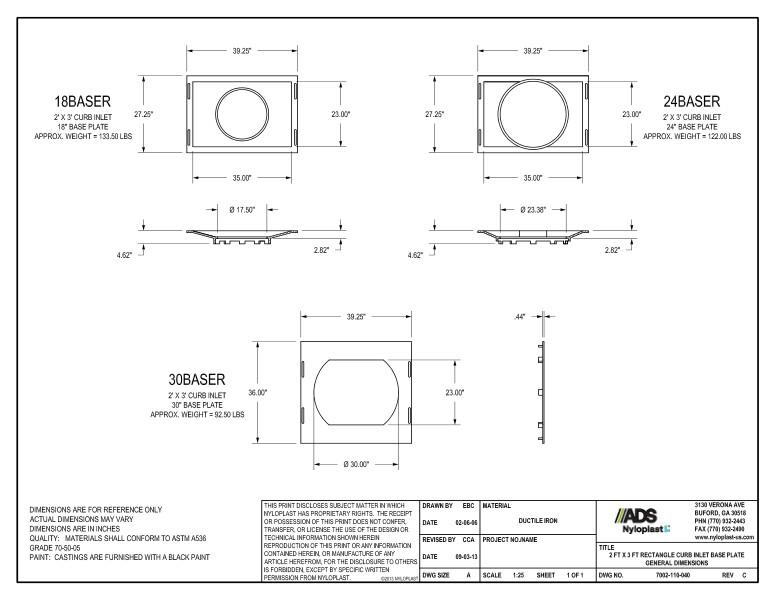

The illustration shows the 18”, 24” and 30” base plates, all with 2’ x 3’ curb inlets and corresponding weights.
Notes detail that dimensions are for reference only and in inches. Materials shall conform to ASTM A536 grade 70-50-05. Castings are furnished with a black paint.
