18" HP End Cap Nyloplast Detail

Filename:
18" HP End Cap Nyloplast Detail.dwg

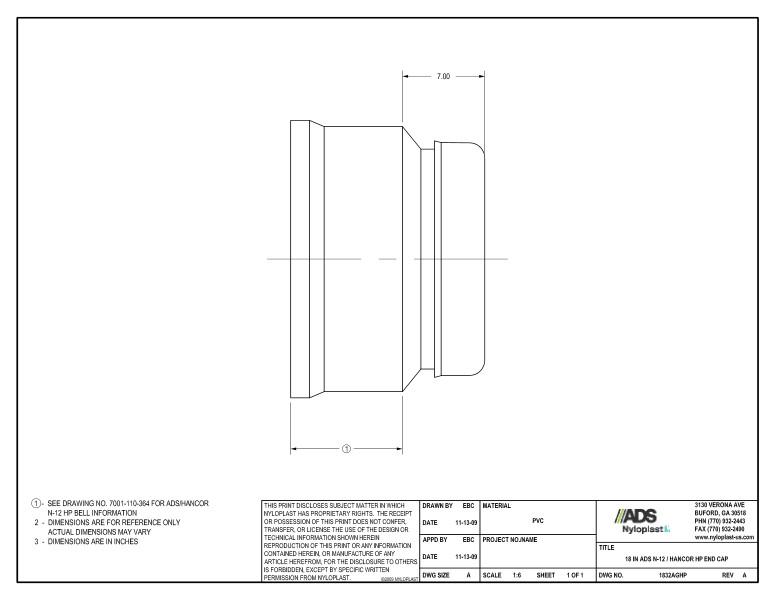

This document is the 18” HP End Cap Nyloplast Detail. End cap illustration shown with dimensions and notes.

The illustration shows the 7.00 dimension.

Note 1 refers to a drawing for ADS/Hancor N-12 HP Bell information. Note 2 states that dimensions are for reference only. Note 3 states that dimensions are in inches.
