10" Standard Grate Assembly (Inline Drain) Nyloplast Detail

Filename:
10" Standard Grate Assembly (Inline Drain) Nyloplast Detail.pdf

Download Document (pdf) View in Browser
10" Standard Grate Assembly (Inline Drain) Nyloplast Detail

This document is the 10" Standard Grate Assembly (Inline Drain) Nyloplast Detail. It shows the nyloplast grate and inline drain with dimensions.

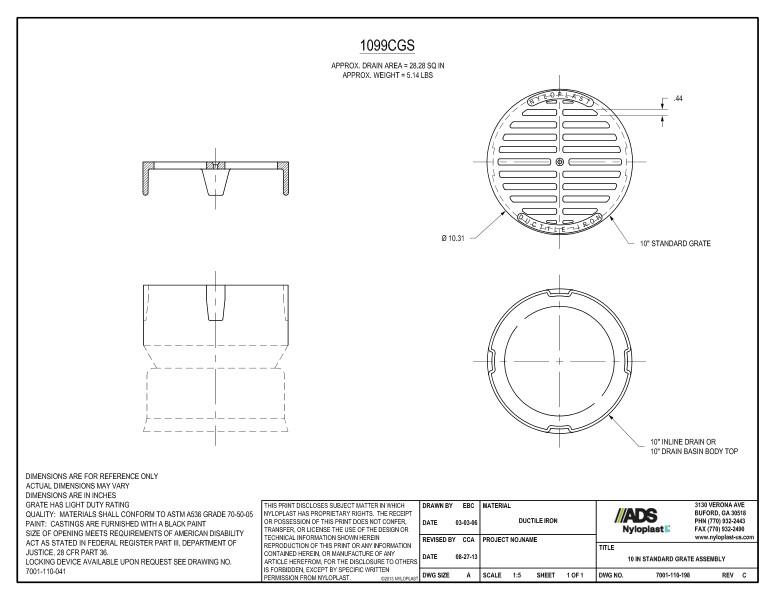

The illustration shows the nyloplast grate and inline drain with dimensions for approximate drain area of 28.28 SQ inches and approximate weight of 5.14 LBS. A top and side view is shown.

Notes detail that dimensions are for reference only and in inches. Grate has light duty rating. Materials shall conform to ASTM A536 grade 70-50-05. Castings are furnished with a black paint. The size of opening meets the American Disability Act. The locking device is available upon request.

10" Standard Grate Assembly (Inline Drain) Nyloplast Detail
