18 x 12 N-12 Dual Wall Wye Nyloplast Detail

Filename:
18 x 12 N-12 Dual Wall Wye Nyloplast Detail.dwg

Download Document (dwg)
18 x 12 N-12 Dual Wall Wye Nyloplast Detail

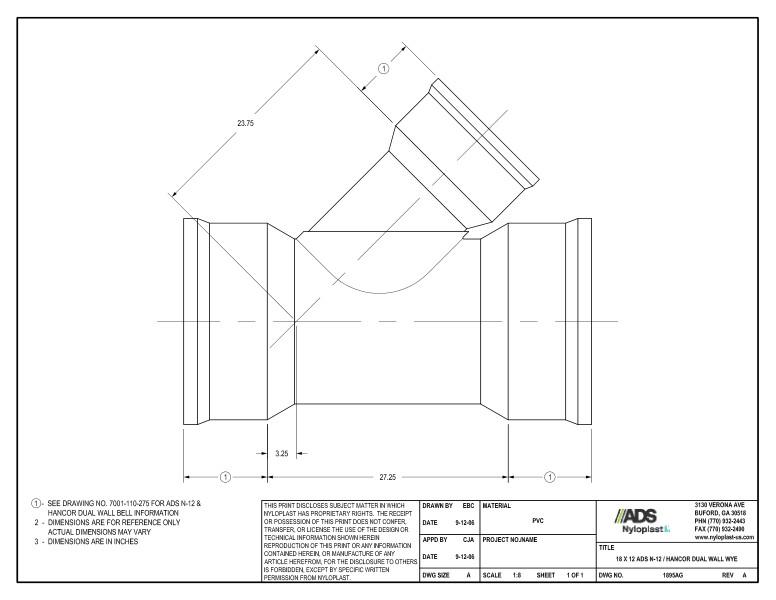

This document is the 18 x 12 N-12 Dual Wall Wye Nyloplast Detail. Dimensions and nyloplast illustration shown.

A note on dimension 1 references Hancor Dual Wall Bell for more information. A note on dimension 2 states that dimensions are for reference only. Note 3 specifies that dimensions are in inches.

An illustration showing the dimensions is provided.

18 x 12 N-12 Dual Wall Wye Nyloplast Detail
