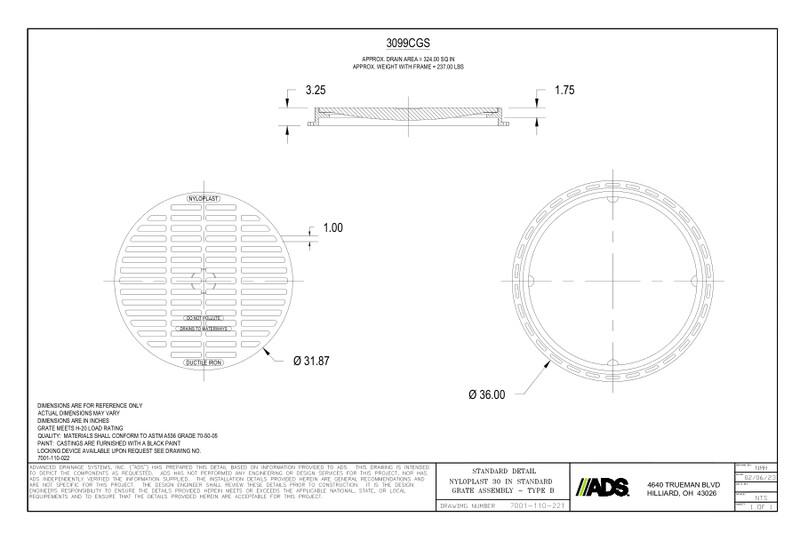

This document is the 30" Standard Grate Assembly Nyloplast Detail. It shows the nyloplast grate and frame with dimensions.

The top down illustration shows the nyloplast grate with dimensions with approximate drain area of 324.00 SQ inches and approximate weight with frame of 237.00 LBS. A top view of the frame and side view is shown.

Notes detail that dimensions are for reference only and in inches. Grate meets H-20 rating. Materials shall conform per ASTM A536 grade 70-50-05. Castings are furnished with a black paint. Locking device available upon request.
