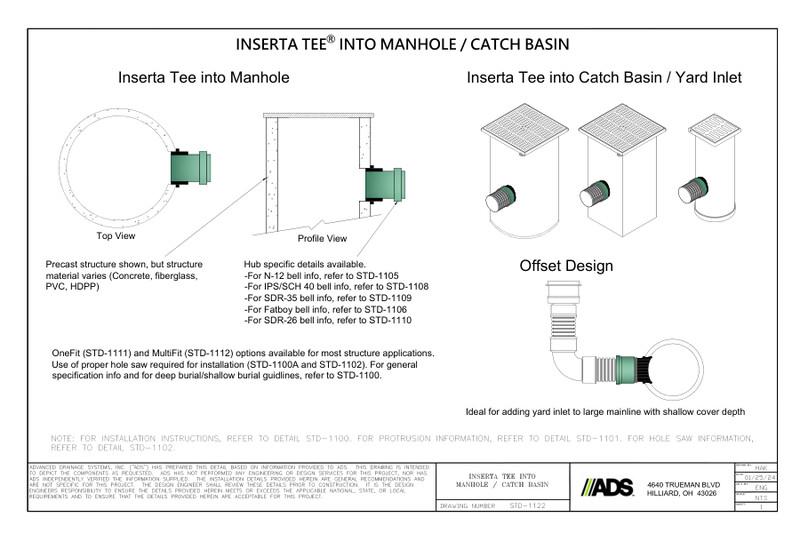

This document explains Inserta Tee Into Manhole-Catch Basin. Details of the Inserta Tee, manhole, catch basin and hub specifics shown.

Inserta tee into manhole top view and profile view detail shows the precast structure with varied materials and hub specific details:

-For N-12 bell info, refer to STD-1105

-For IPS/SCH 40 bell info, refer to STD-1108

-For SDR-35 bell info, refer to STD-1109

-For Fatboy bell info, refer to STD-1106

-For SDR-26 bell info, refer to STD-1110

OneFit (STD-1111) and MultiFit (STD-1112) options available for most structure applications. Use of proper hole saw required for installation (STD-1100A and STD-1102). For general specification info and for deep burial/shallow burial guidlines, refer to STD-1100.

Inserta tee into catch basin/yard inlet details shows various sizes with an offset design, ideal for adding yard inlet to large mainline with shallow cover depth.
