8" Bronze Locking Grate Assembly (Drain Basin) Nyloplast Detail

Filename:
8" Bronze Locking Grate Assembly (Drain Basin) Nyloplast Detail.pdf

8" Bronze Locking Grate Assembly (Drain Basin) Nyloplast Detail

This document is the 8" Bronze Locking Grate Assembly (Drain Basin) Nyloplast Detail. It shows the grate illustrations with descriptions.

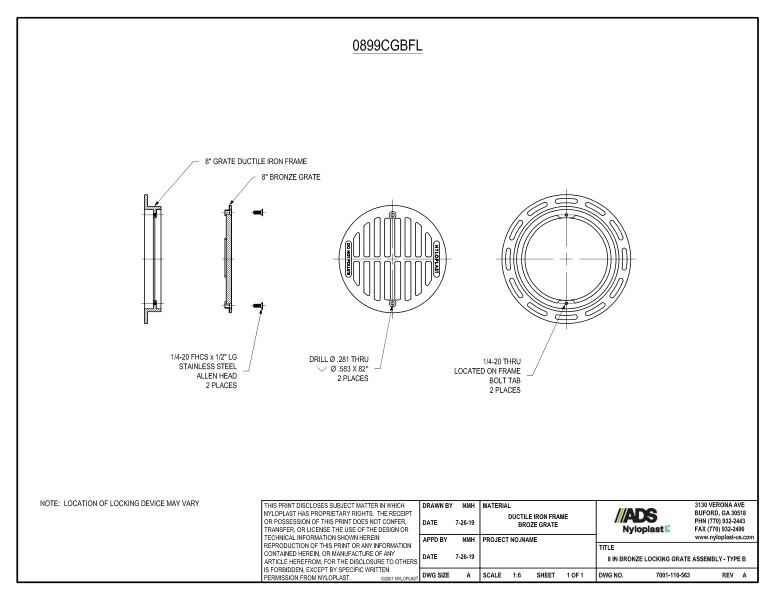

The side view illustration shows the 8" grate ductile iron frame, 8" bronze grate and ¼-20 FHCS x 1/2” stainless steel allen head screws in 2 places. The top down view shows the grate drill hole. The top down view of the frame shows the ¼-20 thru located on frame with bolt tab in 2 places.

Location of locking device may vary.
