30" - 36" StormTech Dual Wall Fabricated Soil Tight Double Reducing Manifolds (StormTech Dual Wall HDPE Fittings)
Filename:
30" - 36" StormTech Dual Wall Fabricated Soil Tight Double Reducing Manifolds (StormTech Dual Wall HDPE Fittings).pdf
This document is the 30" - 36" StormTech Dual Wall Fabricated Soil Tight Double Reducing Manifolds (StormTech Dual Wall HDPE Fittings). Diagrams and table included.

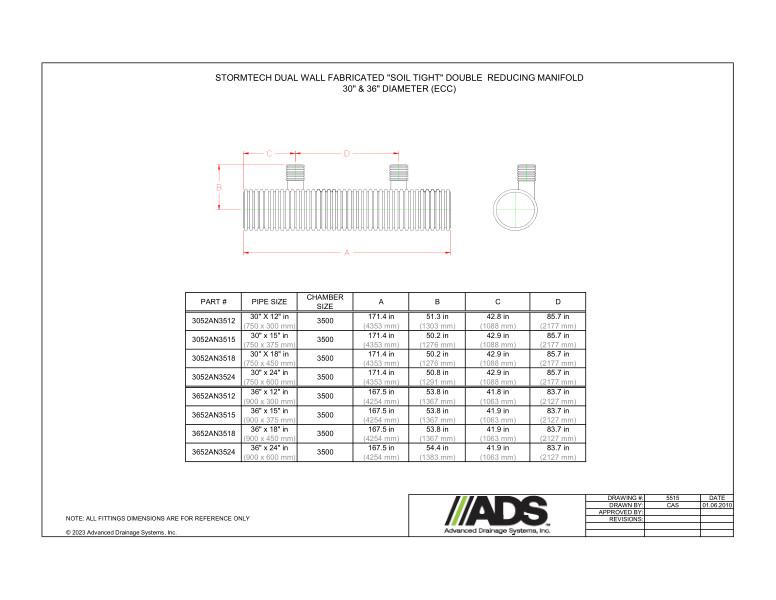

StormTech Dual Wall Fabricated “Soil Tight” Double Reducing Manifold 30" - 36" diameter shows the side view and inside manifold diagrams with A/B/C/D dimensions.
The table lists the part number, pipe size, chamber size and A/B/C/D dimension values.
All fittings dimensions are for reference only.
