24 x 6 N-12 Dual Wall Wye Nyloplast Detail
Filename:
24 x 6 N-12 Dual Wall Wye Nyloplast Detail.dwg
![24 x 6 N-12 Dual Wall Wye Nyloplast Detail](https://assets.adspipe.com/m/1e3185507493f6e/webimage-24-x-6-N-12-Dual-Wall-Wye-Nyloplast-Detail.jpg)

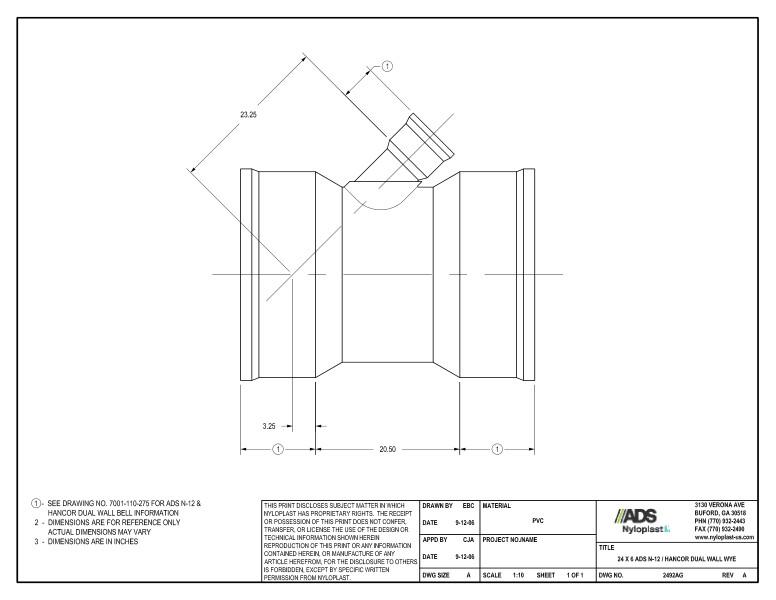

This document is the 24 x 6 N-12 Dual Wall Wye Nyloplast Detail. Dimensions and nyloplast illustration shown.
A note on dimension 1 references Hancor Dual Wall Bell for more information. Note 2 states that dimensions are for reference only. Note 3 specifies that dimensions are in inches.
An illustration showing the dimensions is provided.
