12" - 30" HP Universal Bell Information Nyloplast Detail

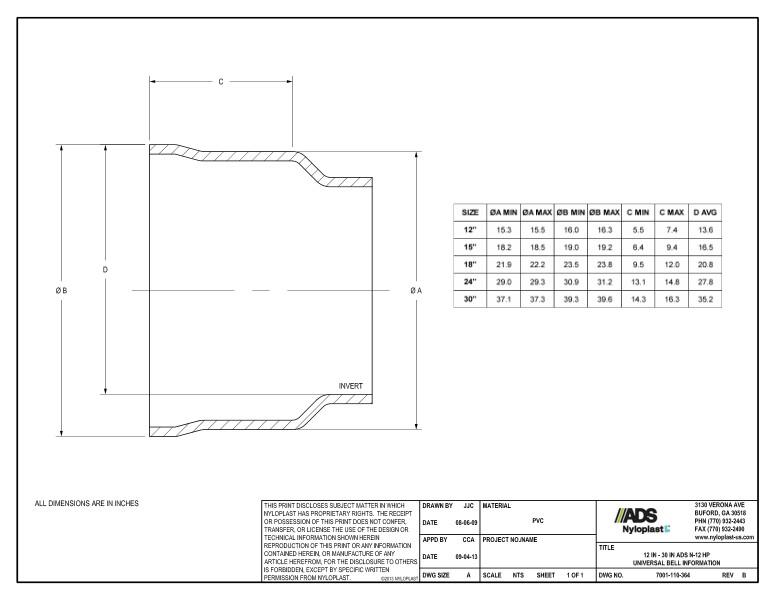

This document is the 12" - 30" HP Universal Bell Information Nyloplast Detail. Illustration with dimension chart shown.

An illustration shows the A – D dimensions and invert. The chart details sizes 12”, 15”, 18” 24” & 30” with corresponding A MIN, A MAX, B MIN, B MAX, C MIN, C MAX & D AVG measurements.

A note specifies that dimensions are in inches.

12" - 30" HP Universal Bell Information Nyloplast Detail
