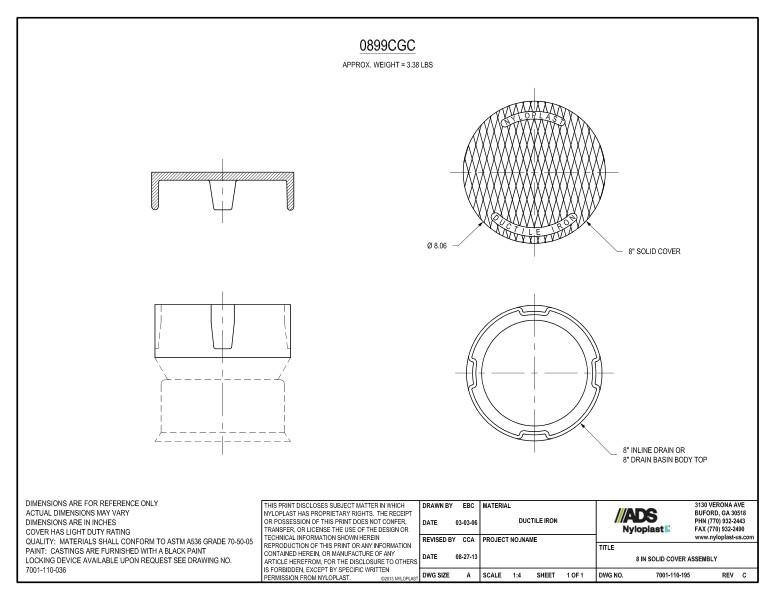

This document is the 8" Solid Cover Assembly (Inline Drain) Nyloplast Detail. It shows the nyloplast solid cover with dimensions.

The illustration shows the nyloplast 8” solid cover with dimensions with approximate weight of 3.38 LBS. A top and side view is shown. 8” inline drain or 8” drain basin body top illustration included.

Notes detail that dimensions are for reference only and in inches. Solid cover has light duty rating. Materials shall be ductile iron per ASTM A536 grade 70-50-05. Castings are furnished with a black paint. The locking device is available upon request.
