2' x 2' Road & Highway Grate Extension Nyloplast Detail

Filename:
2' x 2' Road & Highway Grate Extension Nyloplast Detail.dwg

Download Document (dwg)
2' x 2' Road & Highway Grate Extension Nyloplast Detail

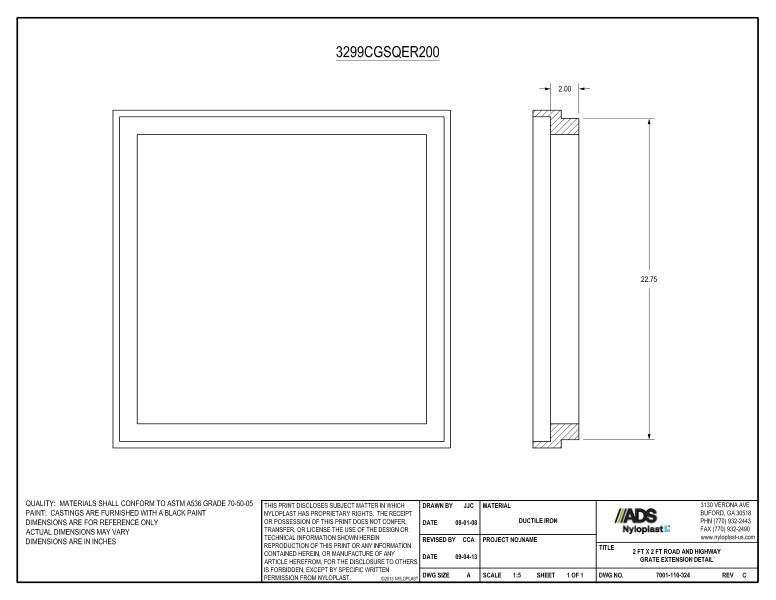

This document is the 2’ x 2’ Road and Highway Grate Extension Nyloplast Detail. 2 nyloplast illustrations with dimensions shown.

The 2 details show the various angles of the grate extension with dimensions.

Materials shall conform to ASTM A536 grade 70-50-05. The castings are furnished with a black paint. Dimensions are for reference only and in inches.

2' x 2' Road & Highway Grate Extension Nyloplast Detail
