12"-18" Fabricated Mitered 90 Degree Bends (HDPE Dual Wall Fabricated Bends Fittings)
Filename:
12"-18" Fabricated Mitered 90 Degree Bends (HDPE Dual Wall Fabricated Bends Fittings).pdf
![12"-18" Fabricated Mitered 90 Degree Bends (HDPE Dual Wall Fabricated Bends Fittings)](https://assets.adspipe.com/m/5a09878cb97f3b39/webimage-12-18-Fabricated-Mitered-90-Degree-Bends-HDPE-Dual-Wall-Fabricated-Bends-Fittings.jpg)
This document is the 12”-18” Fabricated Mitered 90 Degree Bends (HDPE Dual Wall Fabricated Bends Fittings). Plain end & watertight diagrams and table provided.

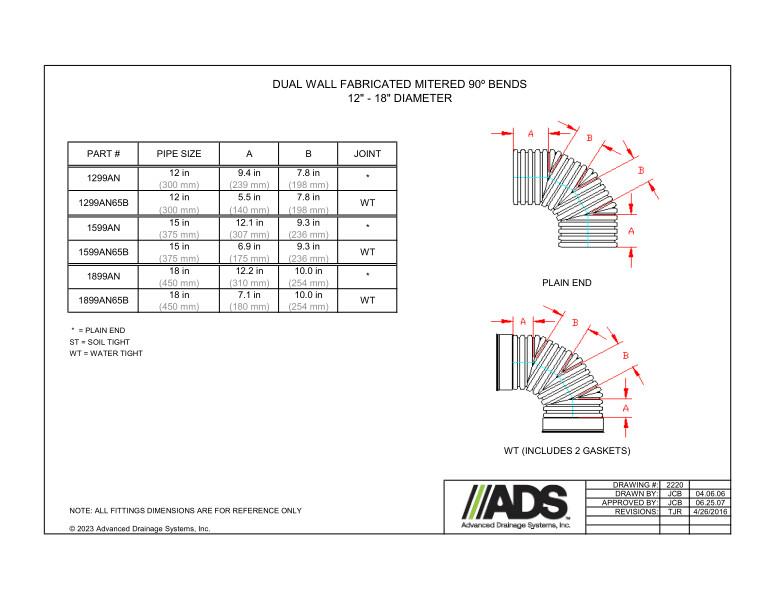

The illustrations of the plain end Bend shows the angle and A/B dimensions. The WT (includes 2 gaskets) Bend shows the angle and A/B dimensions.
A table with part number, pipe size and A/B/Joint dimensions is provided.
All fittings dimensions are for reference only.
