30" N-12 Dual Wall End Cap Nyloplast Detail
Filename:
30" N-12 Dual Wall End Cap Nyloplast Detail.dwg
This document is the 30” N-12 Dual Wall Endcap Nyloplast Detail. Dimensions and nyloplast illustration shown.
A note on dimension 1 references Hancor Dual Wall Bell for more information. Note 2 states that dimensions are for reference only. Note 3 specifies that dimensions are in inches.

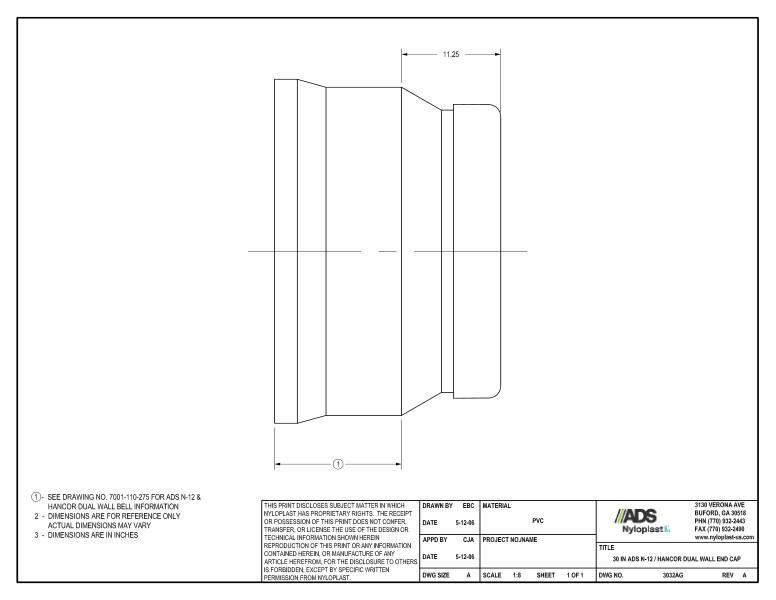

An illustration showing the dimensions is provided.
