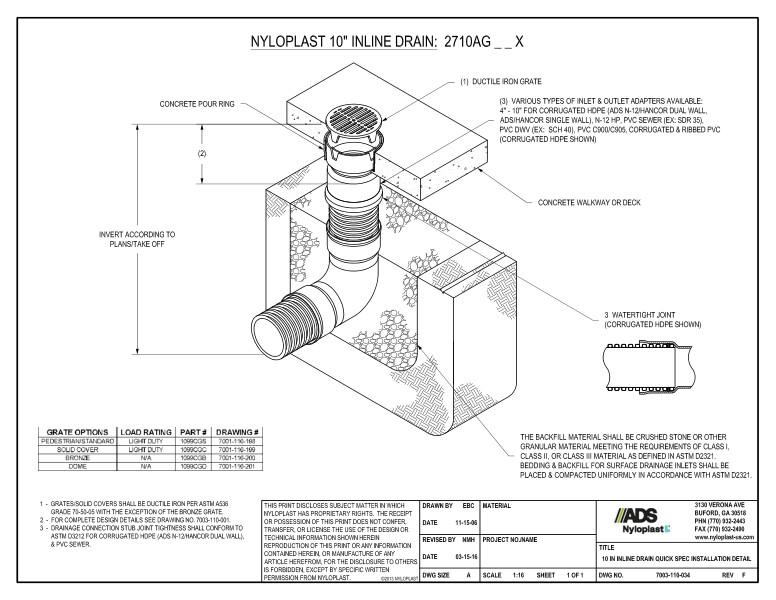

This document is the 10” Inline Drain Quick Spec Installation Nyloplast Detail. It shows the nyloplast inline drain and descriptions.

The illustration shows the ductile iron grate, inverts, concrete pour ring, various types of inlet/outlet adapters, concrete walkway or deck, watertight joint and backfill material made from crushed stone or other granular material.

A chart lists grate options, load rating, part & drawing number.

Note 1 states that grates/solid covers shall be ductile iron per ASTM A536 grade 70-50-05. Note 2 directs to drawing number 7003-110-001 for design details. Note 3 explains that drainage connection stub joint tightness shall conform to ASTM D3212 for corrugated HDPE, N-12 HP & PVC sewer.
