15" - 24" StormTech Dual Wall Fabricated Soil Tight Single Reducing Manifolds (StormTech Dual Wall HDPE Fittings)
Filename:
15" - 24" StormTech Dual Wall Fabricated Soil Tight Single Reducing Manifolds (StormTech Dual Wall HDPE Fittings).pdf
This document is the 15" - 24" StormTech Dual Wall Fabricated Soil Tight Single Reducing Manifolds (StormTech Dual Wall HDPE Fittings). Diagrams and table included.

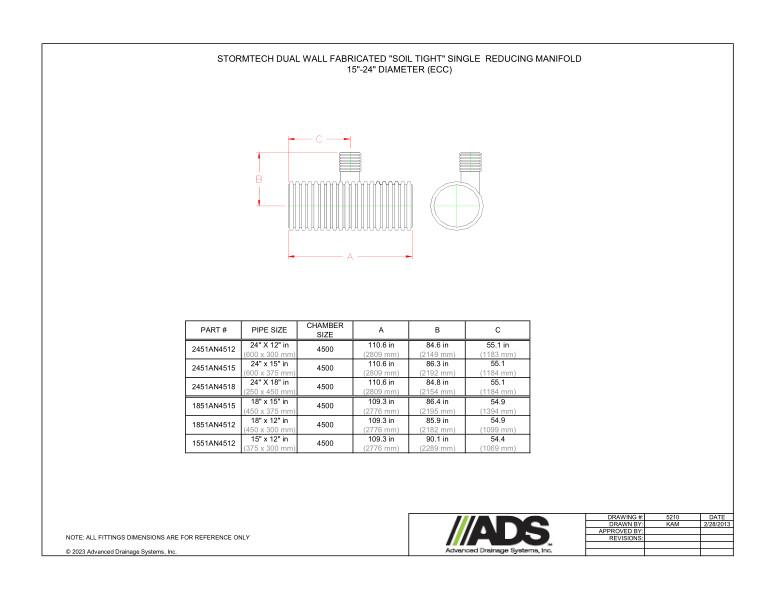

StormTech Dual Wall Fabricated “Soil Tight” Single Reducing Manifold 15" - 24" diameter (ECC) shows the manifold side view diagram and opening diagram with A/B/C dimensions.
The table lists the part number, pipe size, chamber size and A/B/C dimension values.
All fittings dimensions are for reference only.
