30" HP Elbow - 45 Degree Nyloplast Detail

Filename:
30" HP Elbow - 45 Degree Nyloplast Detail.pdf

Download Document (pdf) View in Browser
30" HP Elbow - 45 Degree Nyloplast Detail

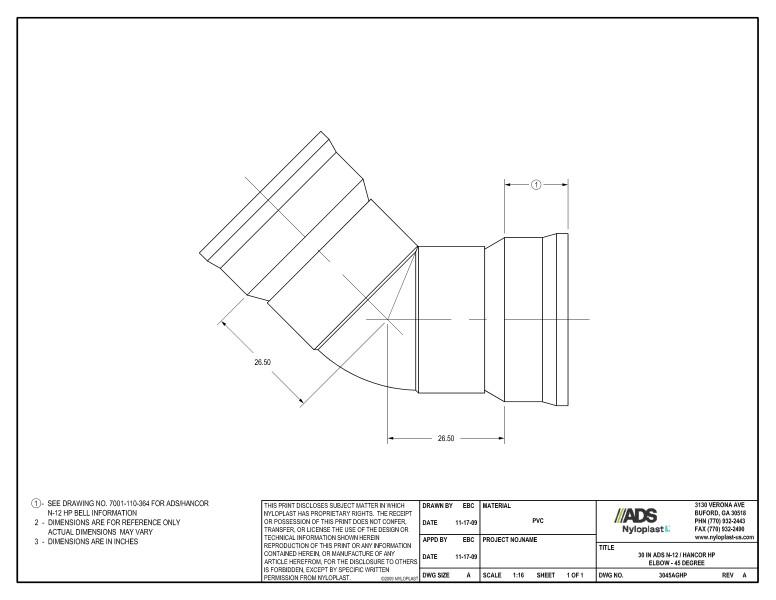

This document is the 30” HP Elbow – 45 Degree Nyloplast Detail. Dimensions and nyloplast illustration shown.

A note on dimension 1 references ADS/Hancor N-12 HP Bell for more information. Note 2 states that dimensions are for reference only. Note 3 specifies that dimensions are in inches.

An illustration showing the dimensions is provided.

30" HP Elbow - 45 Degree Nyloplast Detail
