TN 1.02 HDPE Single Wall Pipe Perforation Patterns
Filename:
TN 1.02 HDPE Single Wall Pipe Perforation Patterns.pdf

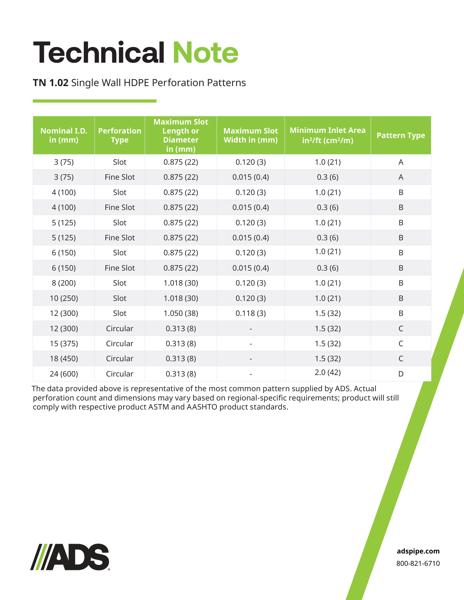

This document is the TN 1.02 HDPE Single Wall Pipe Perforation Patterns. A table and pattern diagrams provided.
The Single Wall HDPE Perforation Patterns chart shows the values for Nominal I.D., Perforation Type, Maximum Slot length or Diameter, Maximum Slot Width, Minimum Inlet Area and Pattern Type.
The diagrams feature the Type A Pattern with 2 slot pattern perforations rotated 90 degrees every other valley, Type B Pattern with 3 slot pattern perforations rotated 60 degrees every other valley, Type C Pattern, 8 hole pattern and Type D Pattern, 6 hole pattern.
