18" HP Repair Coupling Nyloplast Detail

Filename:
18" HP Repair Coupling Nyloplast Detail.dwg

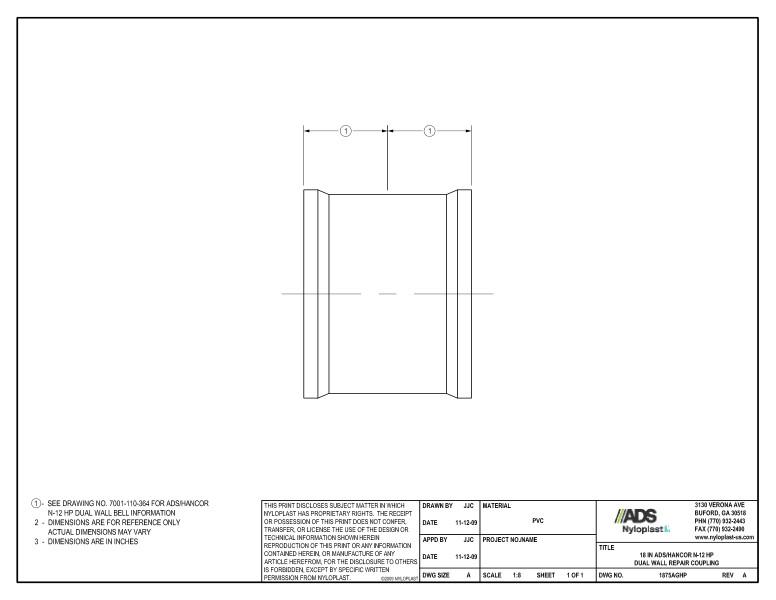

This document is the 18” HP Repair Coupling Nyloplast Detail. Illustration shown with dimensions and notes.

The illustration shows the dimension.

Note 1 refers to a drawing for ADS/Hancor N-12 HP Bell information. Note 2 states that dimensions are for reference only. Note 3 states that dimensions are in inches.
